What’s Inside An Android Tablet?

by Samuel Goh
0 comment
Teclast Android Tablet - P90HD

Have you ever wonder what’s inside an Android tablet?

I did.

Some time last week, an opportunity presented itself to me, to pry open an (almost) dead Android tablet and find out for myself what Android tablets are made of.

You might be amazed and marvelled (just like me) when you find out what’s inside these devices.

My very first Android tablet – the Teclast P90HD.

It was 3 years back or thereabouts that I gotten my first tablet.

It was a China branded tablet – the Teclast P90HD.

Over the years, I had bought a number of Chinese tablets and there are definitely hit and misses, I will write more about them later in other posts.

For now, let’s not digress.

Teclast Android Tablet - P90HD

The Teclast P90HD Android Tablet (taken mine apart so here’s a picture of thje tablet, courtesy of Liliputing).

The Teclast P90HD had a very impressive spec (for 2014 that is).

The specifications read:

– 8.9 inch, 2560×1600 Super Retina display, 339 PPI, 300 LM.
– ARM Cortex-A17, Rockchip RK3288, Mali-T764
– 2GB of LPDDR2
– 16GB eMMC
– 7000 mah battery
– Bluetooth
– 4k output via a micro hdmi port
– Over-the-air (OTA) update

It was housed in a metal body and touted by the manufacturer to perform better than the Xiaomi Mi Pad 1 and the iPad Air.

It “died” at 3……

Some time back, the P90HD decided to give up on me (or did I choose to give up on it instead?) and went bonkers.

Even after a fresh custom rom installation, the tablet’s performance were at best inconsistent.

Right off the first flash, it played 720p YouTube videos smoothly (and sometimes even 1080p too).

After a while it began to slow down tremendously, to the point that system performance huffed and puffed, stuttered and even YouTube streaming was affected regardless of the resolution.

I gave it another shot and flash it one more time… this time around… the same massive slow down continues.

It was then I decided, maybe it is the end of the road for this one.

Let’s make its last journey a meaningful departure.

What’s inside an Android tablet?

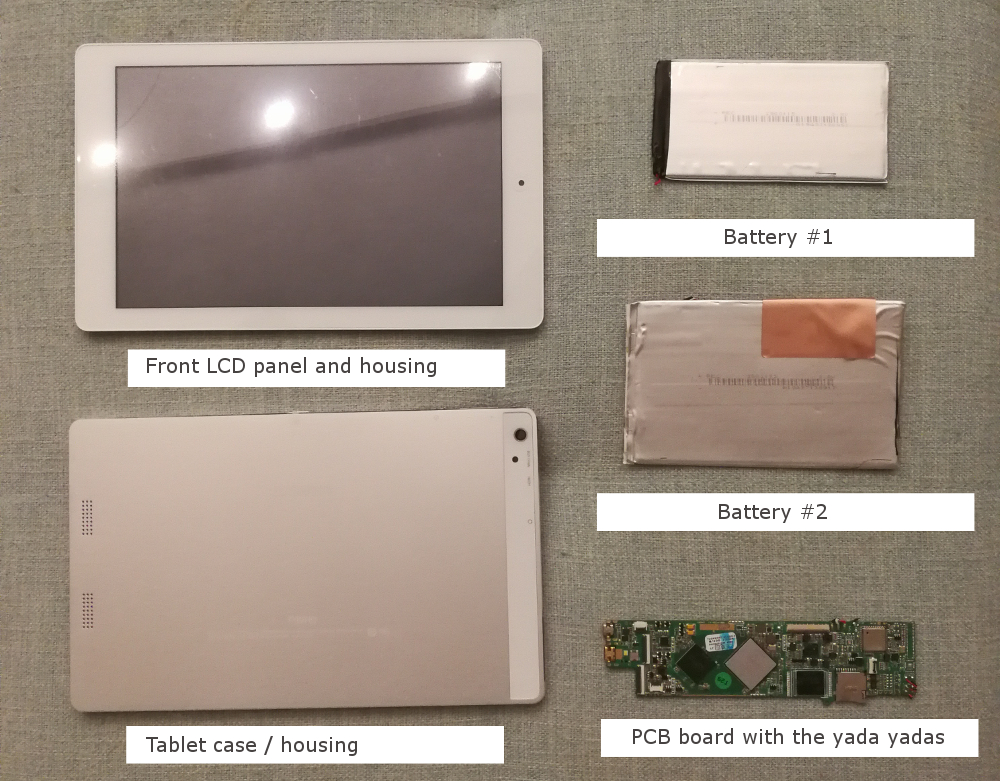

What's inside an Android tablet?

Main components that made up an Android tablet

Regardless which tablet you are using, the hardware it is built on can’t deviate too far away from the above:

  • Front LCD Panel
  • Front LCD Housing
  • Tablet Case / Housing
  • Batteries
  • PCB Board – with your processor, controllers, rams, storage drive etc
  • Camera

I am gonna focus on the PCB board.

For this is where all the magic really start~

Single most important piece of PCB board inside an Android tablet

Android tablet processor, emmc storage, ram and wifi controller

First thing first!

Have you noticed how small and tiny the componenets on the PCB board are? OMG OMG OMG!

If anyone of you is like me, first time seeing the innards of a tablet, i wonder if you will go “Wow, just this to power the tablet???!”

I was both marvelled and awed how engineering managed to sit all these components – processor, eMMc, ram, bluetooth / WIFI controller etc, onto 1 single PCB board to power something about 5-6 times the size of it.

By the way, for a sub S$200 tablet, I am not expecting good components from it, but nevertheless to find a Samsung and a Hynix inside wasn’t really something I expected.

Plans for a replacement Android tablet?

With the demise of the P90HD, is it time to look for a new tablet?

Not really, I had actually prep for this day a long long time ago.

Long before the P90HD gave way, I got myself a Nvidia Shield K1 8″ Android tablet and banished the Teclast into the cold cold faraway abyss.

The Nvidia performed way better than the Teclast – again another story for another day.

I only took out the P90HD as I was spring cleaning the house and thought it will be worth some penny on Caurousell but that did not happen (as you probably can already tell).

At least, it did a good deed on it’s last journey…..

Farewell my “concubine”.
